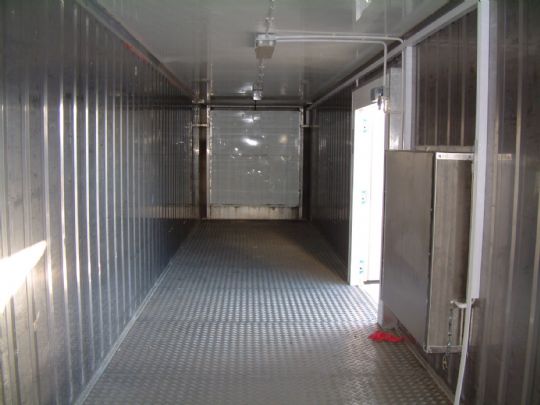

10ft Pharmaceutical Cold Store
Our pharmaceutical mobile cold stores have been used in IMB approved sites
Up to 4 pallets fully loaded
- For the storage of high value inventories such as vaccines, diagnostic kits and blood samples, where strict temperature control is essential
- Full redundancy on critical features
- Fully air mapped
- New and refurbished equipment available
- Temperature range -35°C – +35°C
Features & Benefits
- Unique control systems - full redundancy
- Two independent refrigeration systems - one providing complete backup to the other
- Dual electronic temperature recorders - full traceability
- Two phone in / phone out alarm systems - peace of mind
- Sight and sound alarm systems, kill switches, lock stops
- Units require no planning permission
- Weather proof units, can be sited inside or outside, thereby freeing up valuable internal space
Animation
Power Supply
The pharmagrade cold store has two independent refrigeration units. Each require:
- 1 X 400 Vac 3 phase Neutral and Earth
- Circuit breaker rating 32 amp 3 phase neutral & earth
- 1 X Switched isolator maximum running load 17 amps per unit
- 1 X Integral RCCB power consumption max 10 kw per unit
- 1 X 32 amp 5 pin plug and socket
- Power supply circuit breaker rating 32 amp 3 phase neutral & earth
- Maximum running load 20 amp per unit
- Power consumption maximum 10Kw per unit
- Cable supplied 5 to 10 meters per unit
